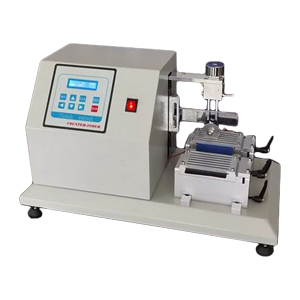

JG021 glove cutting resistance testing machine |
【Scope of application】 JG021 glove cutting resistance testing machine is specially designed to test the strength of protective gloves and upper protection area. Under the specified load, use a counterclockwise rotating circular cutter to cut the sample to determine the cutting resistance of the glove or shoe upper. 【Standards compliant】 EN388.6.2 ISO20344.6.14 【technical parameter】 1. Load weight: 5N±0.05N 2. Blade size: Ø45±0.5 mm, thickness 3mm 3. Cutting stroke: 50mm 4. Cutting speed: 10cm/s 5. Counter 1~99999.9 6. Power supply AC220V±10% 50Hz 7. Instrument size550×350×350mm(L×W×H) 8. Instrument weight 80kg |
