【Scope of application】

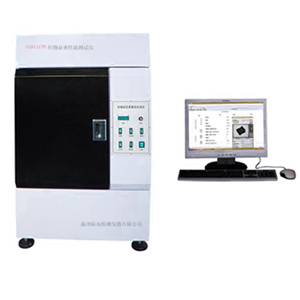

The fabric dynamic drape style meter is a high-tech product used to digitally quantify the dynamic and static drape performance indicators of various fabrics. This machine uses a computer as the main processor to perform digital imaging calculations on the dynamic/static suspension images of the sample transmitted by the test host. The rotation speed of the sample is adjustable, and the digital display is used to obtain the suspension data of the sample at different speeds.

【Related standards】

GB/T 23329

【technical parameter】

1. Drape coefficient (F): 0～100%±2

2. Rotating speed of worktable: 0～115 rpm

3. It can output the horizontal projection graph showing the drape of the fabric, the corrugated coordinate curve and the data report

4. Variable tray radius and sample size to meet the requirements of different tests

5. Sampling tray: φ240mm, φ300mm, φ360mm

6. Sample plate: φ120mm, φ180mm

7. Calibration plate: φ120mm, φ240mm

8. Host size: 670mm×520mm×1100mm

9. Weight: 55kg

10. Power supply: 220 AC
