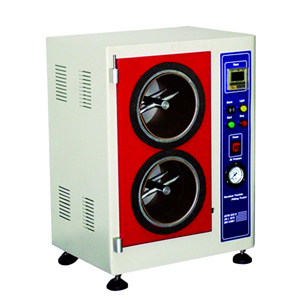

YG512-II type random turning pilling instrument |
【Scope of application】 It is used to test the fuzzing and pilling performance of the fabric under the free rolling friction condition in the rolling box. 【Related standards】 GB/T4802.4, ISO 12945.3, ASTMD3512, ASTMD1375, etc. 【technical parameter】 1. Number of cabinets: 2 2. Roller specifications: 146×152mm 3. Cork lining specification: 452×146×1.5mm 4. Stirring rod specification: L=121mm 5. Rotation speed: 1200r/min 6. Compressed air: 0.014-0.021Mpa 7. Power supply: Ac220V±10% 50Hz 80w 8. Appearance: 480×400×680mm |
