【Scope of Application】

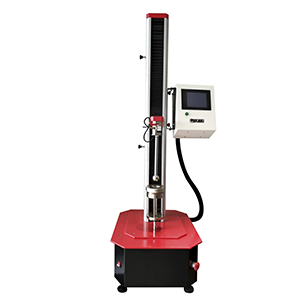

YG031PC marble bursting strength tester is used to test the bursting strength and expansion of marbles of cotton fabrics, elastic fabrics, hosiery and gloves.

【Related standards】

GB/T19976-2005 "Determination of Bursting Strength of Textiles" Steel Ball Method" Steel Ball Φ25mm, Φ38mm

EN12332-1; 1998 Steel ball Φ38mm

FZ/T01030-93 "Determination of Seam Strength and Expansion of Knitted Fabrics and Elastic Woven Fabrics Burst Method" Steel Ball Φ20mm

GB/T8878-2002 "Cotton Knitted Underwear" Steel ball Φ20mm

ASTMD3787-2001 "Standard Test Method for Bursting Strength of Textile Fabrics" Steel ball Φ25.4mm

ASTMD6797-2002 "Standard Test Method for Bursting Strength of Fabrics" Steel ball Φ25.4mm

【technical parameter】

1. Structure form Single arm type (including computer interface)

2. Measuring force range: 1—5000N

3. Effective stroke: 1000mm (without fixture)

4. Load measurement range: 1%-100% of maximum load

5. Load measurement accuracy: +0.02% F•S

6. Beam displacement speed: 0.1-1000mm/min Digital speed regulation, error ≤±2%

7. Speed accuracy: ±0.1%

8. Dimensions (mm): 500×600×1450

9. Fixture configuration: Fixture diameter: ∮45mm (optional ∮25mm)

Diameter of the broken bullet: ∮38mm (optional ∮20mm ∮25mm)

10. Power supply: single-phase AC 220V±10%V

11. Weight: 90kg
