【Scope of Application】

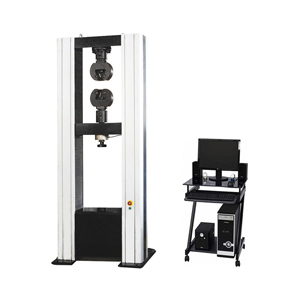

This product is widely used in tensile, compressive, bending and shearing mechanical performance tests of metal and non-metal materials. With a wide range of accessories, it can also be used for the mechanical performance test of profiles and components. It also has a very wide range of application prospects in the field of material testing such as rope, belt, wire, rubber, and plastic with large sample deformation and fast testing speed. It is suitable for testing fields such as quality supervision, teaching and research, aerospace, iron and steel metallurgy, automobiles, construction and building materials.

【Related standards】

JTGE50-2006 Highway Engineering Geosynthetics Test Regulations/T1123-2006 Strip Tensile Test

JTGE50-2006 Highway Engineering Geosynthetics Test Regulations/T1121-2006 Wide Strip Tensile Test

JTGE50-2006 Highway Engineering Geosynthetics Test Regulations/T1125-2006 Trapezoidal Tear Strength Test

JTGE50-2006 Highway Engineering Geosynthetics Test Regulations/T1126-2006CBR Bursting Strength Test

JTGE50-2006 Highway Engineering Geosynthetics Test Code/T1143-2006 Plastic Drainage Belt Core Strip Compressive Yield Strength Test

JTT925.1-2014 Highway Engineering Geosynthetics Geogrid Part 1 Steel-plastic grid/6.4 Strength and elongation

GBT17689-2008 Geosynthetics Plastic Geogrid/6.5 Mechanical Properties

GBT21825-2008 Fiberglass Geogrid/Appendix B Determination of Breaking Strength and Breaking Elongation of Fiberglass Geogrid

GBT15788-2005 Geotextile and related products Wide strip tensile test

GBT17688-1999 Geosynthetics Polyvinyl Chloride Geomembrane/5.8 Tensile Strength and Elongation at Break

GBT1040.3-2006 Determination of tensile properties of plastics Part 3: Test conditions for films and sheets

GBT17688-1999 Geosynthetics Polyvinyl Chloride Geomembrane/5.9 Breaking Strength

GBT3923.1-2013 Textiles Tensile properties of fabrics Part 1 Breaking strength and breaking elongation

GBT13763-2010 Geosynthetics-Determination of tearing strength by trapezoidal method

GBT14800-2010 Geosynthetics Static Burst Test (CBR Method)

JTT925.1-2014 Highway Engineering Geosynthetic Geosynthetic Geogrid Part 1 Steel-plastic grid/Appendix A

JTT480-2001 Transportation Engineering Geosynthetics Geogrid/Appendix A Determination of Ultimate Peeling Force of Bonded Geogrid

FZT01010-1991 Coated fabric coating adhesion strength determination method

JTT516-2004 Highway Engineering Geosynthetics, Geocell/7.2 Cell Sheet Tensile Yield Strength

GBT19274-2003 Geosynthetics Plastic Geocell/7.7 Cell Sheet Tensile Yield Strength

JTT516-2004 Highway Engineering Geosynthetics Geosynthetics Geocell/7.3 Tensile Strength of Welding Joints

GBT19274-2003 Geosynthetics Plastic geocell/7.8 Tensile strength of welded joints

JTT516-2004 Highway engineering geosynthetic material Geocell/7.4 Tensile strength of the junction between geocells

GBT19274-2003 Geosynthetics Plastic Geocell/7.9 Tensile Strength of the Connection Between Geocell Groups

JTT516-2004 Highway Engineering Geosynthetics Geocell/7.5 Strengthen the shear resistance of geocell connectors

JTT529-2016 Plastic Corrugated Pipe for Prestressed Concrete Bridge/6.3.2 Ring Stiffness

GB/T9647-2015 Thermoplastic pipe ring stiffness determination

JTT529-2016 Plastic Corrugated Pipe for Prestressed Concrete Bridge/6.3.3 Local Lateral Load

GBT8804.3-2003 Thermoplastic pipes-Determination of tensile properties-Part 1 General rules of test methods

GBT26941.3-2011 6.4.4 isolation fence welded mesh

There are many standards, not to list them all

【Basic technical specifications】

1. *Large test force (kN) 20 50 100 200 (optional)

2. Accuracy level 1

3. Test force measurement range 2%-100%

4. Relative error of test force indication ＜±1%

5. Test force resolution 1/300000 of the maximum test force

6. Deformation measurement range 2%-100%

7. Relative error of deformation indication ＜±1%

8. Deformation resolution Maximum deformation 1/300000

9. Relative error of displacement indication ＜±1%

10. Displacement resolution (mm) 0.001

11. Speed ??range 0.01mm/min ~ 500mm/min Stepless speed regulation

12. Stretching stroke (mm) 700

13. Compressed space (mm) 700

14. Test width (mm) 450

15. Can be equipped with fixtures: stretching, compression, bending, shearing, peeling, tearing, etc.

16. External dimensions of the host (mm) 868*580*1836

17. Servo motor power (kW) 1.0

18. Total weight (kg) 400
