【Scope of application】

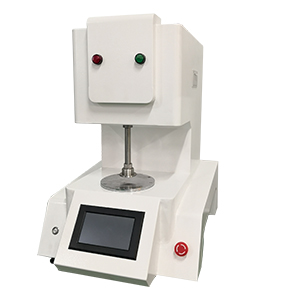

It is used to measure the thickness of geosynthetics and related products under different pressures and specified time.

【Standards compliant】

JTG E50, ISO 9863, GB/T 13761

【technical parameter】

1. Display: 7.8-inch touch screen display, Chinese and English operation interface, remote upgrade and maintenance.

2. Ballast load: 0-1000N

3. Data collection: automatic statistical analysis of maximum value, minimum value, average value, etc.

4. Data storage: 1000 groups, automatic storage, automatic memory function when power off

5. Data output: historical data can be quickly viewed and printed

6. Presser foot area: 25cm (circular diameter: Ф56.42mm) or other area

7. Voltage stabilization time: 10S 20S, 30S, 40S, 50S arbitrarily set

8. Test unit: mm, um, cm

9. Test pressure: digital setting (2±0.01KPa; 20±0.1KPa; 200±0.1KPa and other pressures)

10. Test thickness: 0-25mm

11. Resolution: 0.001mm

12. Measurement method: arbitrary selection of single-point measurement and multi-point measurement

13. Power supply voltage: AC220V±10% Power: 100W

14. Dimensions: 600mm*550mm*450mm
