【Scope of application】

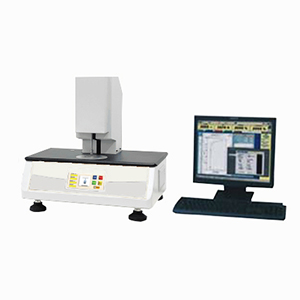

It is used to measure the thickness of geomembrane, sheet and other materials without embossing and corrugation under different pressures and specified time. It can test smooth geomembrane and rough geomembrane through different configurations.

【Standards compliant】

GB/T 6672-2001, GB/T17643-2011 Appendix A, JTG E50, SL 235, etc.

【technical parameter】

1．Microcomputer control, using 7.8-inch touch color screen.

2．Curvature radius of upper measuring surface: SR15mm-SR50mm (smooth surface configuration)

Or SR0.8mm±0.1mm, the angle of the vertebral body is 60±2° (rough surface configuration)

Or 1.0±0.1mm (uneven polymer, asphalt anti-seepage geomembrane configuration) optional

3．Sample pressure: 0.1N～0.5N (smooth surface) or 0.56N±0.05N (rough surface) 0.6N±0.1N ptional

4．Thickness measurement range: 0～12mm

5．Minimum graduation value: 0.001mm

6．Control mode: automatic operation in the whole process, automatic test results

7．Data output: real-time printing of test data, real-time display of maximum, minimum, average and other data

8．Data management: equipped with dedicated test software, online operation two-way control (optional)

9．Dimensions: 450mm×350mm×380mm

10．Weight: 55Kg
