【Scope of application】

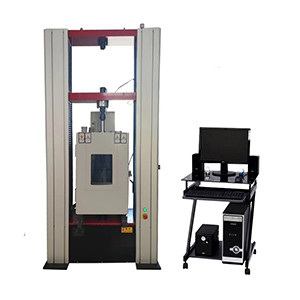

This machine is composed of the main body of the tensile machine, fixtures, and a movable high and low temperature test box. It is suitable for stretching, peeling, tearing, compression, bending, shearing, puncturing of the entire material with high and low temperatures. , Low-cycle fatigue and other items of the mechanical performance test; when using the normal temperature test, the high and low temperature box can be removed to increase the use of space and facilitate other test purposes.

【Related standards】

GB, ISO, JIS, ASTM, DIN and other international standards and industry standards;

【technical parameter】

一、 Some technical parameters of tensile testing machine

1. Temperature range: -70℃～room temperature 150℃ (constant temperature 150℃);

2. Lifting speed: ≥5℃/min;

3. Resolution of temperature control meter: 0.1℃;

4. Maximum load: 0-50KN arbitrarily selected;

5. Accuracy of load cell: 0.01%;

6. Test accuracy: <±1% or <±0.5%;

7. Operation mode: full computer control, digital control;

8. Effective width: 420mm;

9. Effective test: about 800mm can be heightened according to needs;

10. Test speed: 0.001～500mm/min (or within 1000mm);

11. Speed ??accuracy: within ±0.5%;

12. Displacement measurement accuracy: within ±0.5%;

13. Deformation measurement accuracy: within ±0.5%;

14. Safety device: electronic limit protection, emergency stop.

二、 Technical parameters of low temperature refrigeration control system:

1. Temperature control range: customized according to customer requirements, Min.-70℃~Max.150℃;

2. Control method: P.I.D. automatic temperature calculation;

3. Humidity range: 2%RH~98%RH;

4. Control stability: ±2.5%RH, ±1℃;

5. Distribution uniformity: ±3%RH, ±1℃;

6. Cooling compressor: single-stage fully enclosed French Taikang original compressor;

7. Cooling rate: >1℃/Min;

8. Timer: LED, 0~9999 hours and 99 minutes;

9. Inner box material: SUS#304, mirror stainless steel plate;

10. Inner box size: (L×W×H) 40×40×70cm (customizable);

11. Outer box material: sand grain stainless steel plate, the tensile machine is aluminum-shaped double-column, high-grade paint;

12. Insulation layer: high-density rigid PU styrofoam and 24K glass wool.

三、 Accessories:

A. One year warranty and one Chinese operation manual;

B. A set of standard fixtures (optional fixtures for other fixtures) will be presented at random;

C. One special test software;

D. One set of brand computers and one color printer.
