【Scope of application】

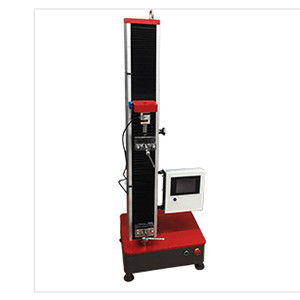

It is used for the tensile, tearing, bursting, constant elongation, constant load, elasticity, suture slip, peeling and other mechanical performance tests of composite products such as leather, plastic woven bags, fabrics, etc. This model is specially designed according to China Plastics The relevant test requirements provided by the Knitting Association are a set of test systems specially developed for the woven bag and woven fabric industries.

【Related standards】

GB/T3923.1, ISO13935.1, ISO9073.3/4, GB10140, GB/T8947-1998<Composite plastic woven bag>

【technical parameter】

1. Load element: 0.5-level high-precision force sensor

2. Capacity selection: 100KG, 200KG, 500KG

3. Accuracy level: Level 1

4. Test range of test force: 0.4%～100%FS

5. Force accuracy: 0.02%F.S

6. Power resolution: 1/200000

7. Power magnification: X1, X2, X5, X10, X20, X50, X100 and other seven gears full automatic gear shift switching

8. Displacement indication error: ±1% of indication

9. Displacement resolution: 0.005mm

10. Control system: frequency converter

11. Transmission mode: AC variable frequency motor

12. Motor function: 0.37KW

13. Reducer: Italy OTS precision hollow cast aluminum reducer

14. Transmission joint plate: forging of high carbon steel, with good mechanical strength and no deflection

15. Drive screw: adopt Taiwan double structure precision ball screw

16. Guide rod: made by South Korean Tae King guide rod, the surface is treated with high frequency and hard chrome plating, HRC60 or higher

17. Active bearing: adopt Japanese NSK high carbon ball bearing

18. Body structure: the main frame and the control box are separated design

19. Test speed range: (25～100) mm/min, (50～200) mm/min, (100～500) mm/min, choose one

20. Speed ??accuracy: within ±1% of the indicated value

21. Test stroke (excluding fixture): 1000mm

22. Fixture processing: all fixtures are treated with hard chrome plating, HRC55 or above

23. Dust-proof device: adopts Taiwanese anti-folding dust cover to protect the ball screw from dust and ensure the life and accuracy of the ball screw

24. Surface treatment of the body: adopts DuPont powder from the United States, electrostatic spray paint process, curing at a high temperature of 200 ℃ to ensure that the color will not fade for a long time

25. Display system: JG-TEST Chinese (English) LCD display system

6. Multiple protection devices:

①. Mechanical start switch protects upper and lower limits of travel

②. Emergency stop switch brake protection in emergencies

③. Overcurrent, overvoltage, undercurrent, undervoltage, leakage and overload protection

④. Software overload limit protection

⑤. Breakpoint shutdown protection

⑥. Emergency braking can be performed in an emergency

27. Active switch: Japan Sanling 30A, leakage protection switch

28. Volume: (560x420x1800) mm

29. Power supply: AC220V 50HZ

30. Weight: about 200kg
