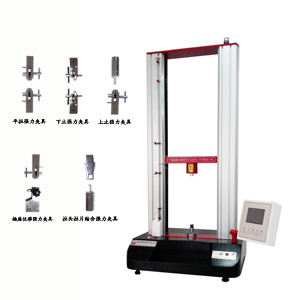

YG026DL Zipper Comprehensive Strength Machine | ||||||||||
【Scope of application】 It is used for the strength test of zipper flat pull, top stop, bottom stop, self-locking, open end flat pull, socket displacement, pull head pull tab combination, polyester silk, zipper webbing, etc. 【Related standards】 QB/T2171 QB/T2172 QB/T2173 etc. 【technical parameter】 1. Working mode: CRE principle, microcomputer control, print report 2. Measuring force range: 1%~100% of full scale
3. Force measuring accuracy: ≤±0.02%F.S 4. Stretching speed: 0.01-500mm/min 5. Output mode: display output, print output 6. Electricity source: AC220V±10% 50Hz 600W 7. Dimensions: 855×455×1750mm 8. Heavy volume: 300Kg
|
