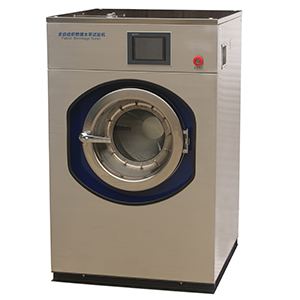

YG089E type automatic shrinkage test machine |
【Scope of application】 The fully automatic shrinkage tester is used to test the dimensional stability of fabrics, clothing or other textiles after washing. 【Related standards】 GB/T8629-2001 GB/T8630-2001 ISO6330/5077 FZ/T70009 BS4923 EN25077/26330, JIS L1909, M&S, IWS, etc. 【technical parameter】 1. Type: Front door feeding, horizontal roller 2. Maximum washing capacity: 5kg 3. Inner drum: diameter 51.5±0.5cm; depth 33.5±0.5cm 4. Drum speed: washing speed 52 r/min, dehydration speed 530 r/min (stepless speed regulation, digital setting) 5. Water level control: pressure sensor detection (digital setting) 6. Temperature control: room temperature -99.9℃, (digital setting) 7. Heating power: 5400W 8. Dimensions: 780×700×1280mm (L×W×H) 9. Power supply: AC220V or AC380V, 6500W |
