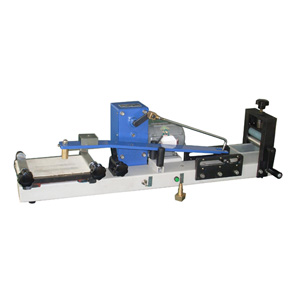

YG571B Dyeing Fastness Tribometer |
【Scope of application】 It is used to determine the color fastness to dry and wet rubbing of colored fabrics such as cotton, chemical fiber, blended fabrics and leather. 【Standards compliant】 GB/T3920 GB/T 5712 ISO105X12 AATCC8 AATCC165 JIS L0849 【Basic technical specifications】 1. Friction head pressure: 9±0.2N 2. Diameter of friction head: 16mm or 19×25.4mm 3. Number of crank rotations: 60 times/min 4. Number of reciprocations: 10 times 5. Stroke of friction head: 104±3mm 6. Maximum sample size and thickness: 220×110×5mm 7. Motor power: 30w 8. Dimensions: 760×270×240mm 9. Voltage: AC220V, 50HZ 10. Instrument weight: about 20Kg |
