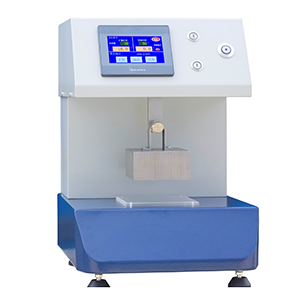

JG069 liquid back seepage tester |
【Scope of application】 A test method used to determine the resistance of the covering material of a diaper to the re-wetting of the liquid that has penetrated to the skin. 【Standards compliant】 GB/T 24218.14 Textiles Nonwovens test method Part 14: Determination of moisture content of covering materials ISO 9073-14 Textiles-Test methods for non-woven fabrics-Part 14: Moisture resistance of surface materials 【technical parameter】 1. Simulated baby load weight and size: 4000g±20g (10×10cm) 2. The effective stroke of the weight relative to the lifting of the sample: 5cm 3. Lifting speed: 60mm/min 4. The placing and staying time can be set: 1~999s 5. Tray size: 170mm×170mm 6. Dimensions: 430×410×540mm 7. Weight: 51kg |
