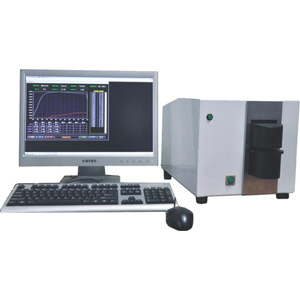

YG912E Textile UV Tester |
【Adaptation】 Textile UV Tester is a special instrument used to test the UV transmittance and anti-ultraviolet performance of textiles. It can directly test the UV protection coefficient UPF of textiles. At the same time, it meets the American AATCC183, the European Union PREN13758, the Australian standard AS/NZS 4399, the British standard BS 7914, etc. 【Related standards】 GB/T 18830 AATCC 183 AS/NZS 4399 BS 7914 PREN13758 【technical parameter】 1. Measurement range: Transmittance: 0-100%±0.01% UPF: 0-100 2. Wavelength range: 280~400nm±0.5nm 3. Wavelength repeatability: 0.25nm 4. Data interval: 1nm—5nm adjustable 5. Slot width: ≤5nm 6. Optical system: 0/d 7. Sample beam diameter: 10mm 8. Electricity source: AC220V 50Hz 100W 9. Dimensions: 310×500×300mm 10. Weight: 20kg |
