【Scope of application】

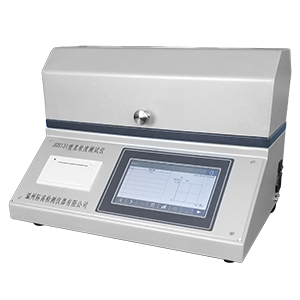

This instrument is a test instrument that simulates the softness of the hand. It is suitable for the softness determination of high-grade toilet paper, tobacco sheets, fiber fabrics and other materials. Softness Under specified conditions, when the plate-shaped side head presses the sample into the slit to a certain depth (about 8mm), the sum of the bending force of the sample itself and the maximum vector of the friction between the sample and the gap becomes Softness, expressed in millinewtons, the smaller the softness value, the softer the sample.

【Related standards】

T498SU, GB/T8942 "Determination of Paper Softness", GB/T450, GB/T10739, YC/T16 standards

ASTM D 2923-95: Applicable to the stiffness of film and sheet materials

TAPPI T 498 cm-85: the softness of suitable toilet paper

IST 90-3 (95) standard non-woven fabric

【technical parameter】

1. Measuring range: 10～1000mN

2. Resolution: 0.01mN

3. Indication error: ±1% (less than 20% of the upper limit of the measurement, it is allowed to exceed the specified range by 1mN)

4. Indication repeatability error: <3% (less than 20% of the upper limit of the measurement, it is allowed to exceed the specified range by 1mN)

5. Total stroke of the probe: 12±0.5mm

6. Depth of probe pressing: 8＋0.5mm

7. Specimen table slit width (four levels): 5mm, 6.35 mm, 10 mm, 20 mm, width tolerance ±0.05mm

8. Parallelism error on both sides of the slit width of the sample stage: ≤0.05mm

9. Neutral error of probe: ≤0.05mm

10. Power supply: 220V

11. Dimensions (length×width×height): 240×300×280

12. Weight: about 10kg
