【Scope of application】

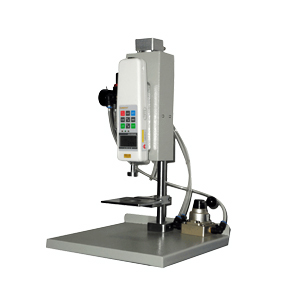

It is used to detect the stiffness (the resistance of textiles against multi-directional bending) of various fabrics (including knitted fabrics and non-textiles of optical fibers).

【Related standards】

ASTM D4032-2008

【technical parameter】

1. Specimen specification: 102x204mm

2. Capacity: 500N

3. Test platform: 102x102mm, center hole diameter 38.1mm (1.5")

4. Loading head: diameter 25.4mm(1”)

5. Stroke: 57mm (2.25")

6. Loading method: pneumatic loading

7. Loading speed: 1.7±0.3s/57mm

8.Loading air pressure: 324Kpa (47Psi)

9.Volume (WxDxH): 30x30x48cm

10.Weight (Kg): ≈15Kg
