【Scope of application】

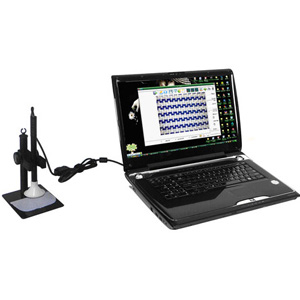

Y(B)511A series computerized fabric density meter is a special instrument used to test the warp and weft density of fabrics. The portable high-precision camera collects fabric pictures, coupled with special analysis software, can easily complete the measurement of fabric warp and weft density on the computer.

【Standards compliant】

GB/T4668 ISO 7211.2

【technical parameter】

1. Camera magnification: 1～50 times

2. Types of test samples: woven fabrics, knitted fabrics

3. Test direction: vertical measurement, horizontal measurement

4. Statistical methods: warp (longitudinal), latitude (horizontal)

5. Result display mode: line number/10mm, line number/inch

6. Focus: auto focus, rotating zoom (-Ⅱ type: fixed focus, no zoom)

7. Pixel: 2MP, 1600*1200, 640*480.320*240

8. Support operating system: Windows7/Xp/Vista/Mac OS/Linux

9. Measurement: 5-wire sampling, 10-wire sampling

10.Image speed: 30 frames/sec

11. Light source: LED light, adjustable brightness (-Ⅱ type: LED light, non-adjustable brightness)

12.Interface: USB2.0

13. Packing size: 11cm(L)*11cm(W)*13cm(H)

14. Gross weight: 660g (excluding computer)
