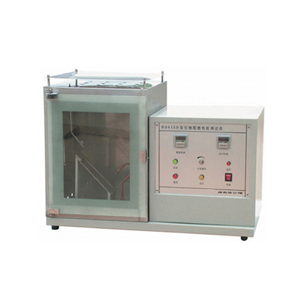

YG(B)815D—Ⅳ Fabric Flame Retardant Tester (small 45° method) |
【Scope of application】 The fabric flame retardant instrument (small 45° method) is used to test the intensity and speed of burning after flammable textile materials are ignited. 【Related standards】 GB/T14644 ASTM D11230 CFR1610 etc. 【technical parameter】 1. Spread timing: 0~999.9S 2. Temperature display in the box: room temperature -99℃ 3. Ignition time: 1s 4. Type of igniter: Syringe No. 5. Sample holder size: outer frame: 205mm×76mm Inner frame: 165mm×40mm 6. Distance from the top of the igniter to the sample surface: 8mm 7. Dimensions: 440mm×370mm×540mm 8. Power source: AC220V 50Hz 20W |
