【Scope of application】

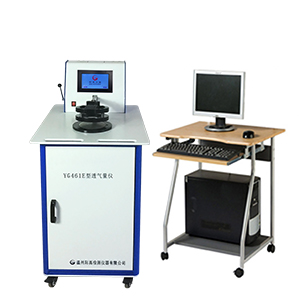

The fabric breathability tester is used to measure the breathability of a variety of textile fabrics, including technical fabrics, nonwovens and other textile products and other breathable materials; according to AFNOR (French Institute of Standards) G07-111, ASTM (American Materials Testing Standard) D737, BS 5,636 (British Standard), DIN 53,887 (German Industrial Standard), EDANA 140.1 (European Association for Disposable and Nonwoven Fabric Manufacturing), ISO 9,237 (International Organization for Standardization), JIS L1096-A (Japanese Industrial Standard) ), TAPPI T251 (Technical Association of Pulp and Paper Industry) and other standards for automated operation and digital operation.

【Standards compliant】

GB/T 5453-1997 Textiles Determination of fabric breathability

ISO9237-1995 Textiles Determination of Fabric Air Permeability

BS EN ISO9237-1995 Textiles Determination of air permeability of fiber fabrics

DIN EN ISO9237-1995 Textiles Determination of air permeability of fiber fabrics

EN ISO9237-1995 Textiles Determination of air permeability of fiber fabrics

ASTM D737-2004 (2012) Test Method for Air Permeability of Textiles

JIS L1096-8.26A:2010 General Textile Test Method

ISO9073-15: 2007 Textiles and Nonwovens Test Methods Part 15 Determination of Air Permeability

BS EN ISO9073-15: 2008 Textiles Nonwovens Test Methods Part 15 Determination of Air Permeability

DIN EN ISO9073-15: 2008 Textiles Nonwovens Test Methods Part 15 Determination of Air Permeability

EN ISO9073-15: 2008 Textiles and Nonwovens Test Methods Part 15 Determination of Air Permeability

BS 3424-16-1995 Coated fabric testing. Part 16 Determination of air permeability

GB/T 13764-1992 Test method for permeability of geotextile

GB/T 22819-2008 Determination of Air Permeability of Highly Air Permeable Paper

QB/T l461-1992 Determination of air permeability of highly air permeable paper

JIS K6400-7-2004 Determination of physical properties of flexible porous polymer materials Part 7 Air permeability

AFNOR G07-111, BS 5636, DIN 53887 and other air permeability standards

 【technical parameter】

1 Pressure force range: 1～4000Pa self-set pressure drop

2 Measurable air permeability: 0.2～30000mm/s

3 Measurement error: ≤±2%

4 Measurable fabric thickness: ≤15mm

5 Air suction volume adjustment: data feedback dynamic adjustment

6 Fixed value circle of sample area: 5cm2; 20cm2; 50cm2; 100cm2; four

7 Sample diameter fixed value circle: Ф50mm (≈19.6cm2) Ф70mm (≈38.5cm2)

8 Spray mouth: 11 in total

9 Data processing volume: ≤5000 trials

10 Data output: high-definition touch screen display; A4 Chinese printing; USP computer interface; two-way test function.

11 Electricity source: AC 220V±10V 50Hz

12 Power consumption: 2000W

13 Heavy Amount: 80Kg

14 External shape: 550×650×1100mm (L
