【Scope of application】

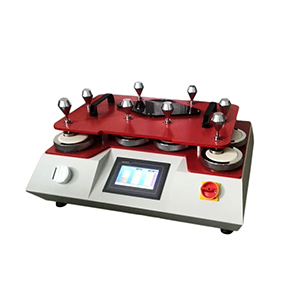

This instrument is suitable for testing the abrasion resistance and pilling degree of knitted fabrics, woolen fabrics, artificial leather, synthetic leather, etc. under pressure.

【Standards compliant】

GB/T 21196.1-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 1

GB/T 21196.2-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 2

GB/T 21196.3-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 3

GB/T 21196.4-2007 Textiles Determination of the abrasion resistance of fabrics by Martindale method Part 4

GB/T 4802.2-1997 Textiles, Fabric Pilling Test Martindale Method

GB 8690-88 Test method for abrasion resistance of wool fabric Martindale method

ISO 12945-2:2002 Textiles-Determination of surface pilling performance of fabrics Part 2 Martindale method

GB/T 13775-92 Abrasion resistance test of cotton, linen and spun silk woven fabric Martindale method

ASTM D4966-1988 Fabric Abrasion Resistance Test Martindale Abrasion Tester

ASTM D4970-2002 Fabric Anti-pilling Test Method Martindale Tester

JIS 1096 E Law Martindale Method

【technical parameter】

1. Number of stations: 8 stations

2. Counting range: 0～999999 times

3. Maximum stroke: Horizontal: 60±0.5mm Longitudinal: 24±0.5mm

4. The quality of pressurized material:

a. Holder: 198±2g

b. Clothing sample weight: 395±2g

c. Furniture decoration sample weight: 595±2g

5. Effective friction diameter of grinding block:

Type A 200g (1.96N) friction head (9KPa) 28.8 -0.084mm

6. The relative speed of the gripper and the grinding table: 50±2r/min, 47±2r/min

7. The quality of sample loading hammer: 2500g±25

8. Dimensions: 885×750×450mm

9. Electricity source: Ac220V 50Hz 500W

10. Weight: 150kg
