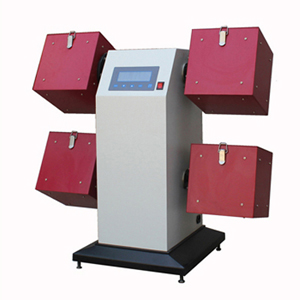

YG(B)511-IV Rolling Box Pilling Apparatus |
【Scope of application】 The roller box pilling tester is used to determine the degree of pilling of most fabrics (more suitable for woolen woven fabrics) and the abrasion resistance of thin cotton, hemp, and spun silk woven fabrics under light pressure. 【Related standards】 GB/T4802.3, ISO12945-1, JIS L1076, IWS TM152 【Test Mode】 Put the fabric sample on the sample tube, put it in a square wooden box lined with rubber cork with a specific friction coefficient, and roll it to the specified number of times, compare it with the standard sample, and evaluate the pilling level 【technical parameter】 1. Number of pilling boxes: 4 2. Cabinet speed: 60r/min 3. Test revolution: 1~99999, (LED display) 4. Dimensions: 780×430×500mm 5. Power supply: AC220V, 90W |
