【Scope of application】

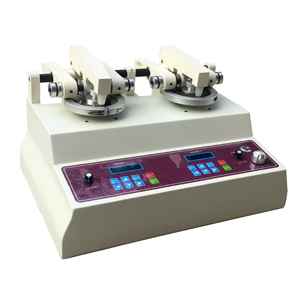

Products used to test flat surfaces, such as suitcases, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal coatings, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, resilient floor mats, traffic paints, Wear resistance tests of anodized layers, blankets, electronic components, decorative boards, waxes, labels, holsters, dental materials, automotive interior decorations, resins, furniture, etc., to evaluate the degree of wear resistance of their products, such as measuring their quality loss, Thickness loss and light transmittance, etc.

【Related standards】

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799

【technical parameter】

1. Diameter of working plate: Ф115mm double plate

2. Rotation speed of working plate: 50--120r/min, speed can be adjusted arbitrarily, forward and reverse

3. Overall dimensions of grinding wheel: diameter Ф50mm thick 13mm

4. Counting method: electronic counting 0～999999 times Arbitrary setting, plus and minus two counting modes

5. Pressurizing method: relying on the self-weight of the pressurizing sleeve of 250cN or adding a combination of weights

6. Weight weight:

Weight (1): 1000g

Weight (two): 500g

Weight (three): 250g

Weight (four): 750g

7. Maximum thickness of sample: 20mm

8. Vacuum cleaner: Model A1-8237F Adjustable air volume

9. Maximum power consumption: 1400W

10. Electricity source: voltage 220V frequency 50Hz

11. External dimensions of the instrument: 750×380×360 (L×W×H) mm

(Without vacuum cleaner)

12. Net weight: 40Kg (excluding vacuum cleaner)

Remarks: This machine can be equipped with special grinding wheels for textiles, as well as H18, H10, CS10, CS17, H38, H22, CS0, CS5, CS35, CS39 and other different grinding wheels. For details, please consult the sales representative 400-689-6780
