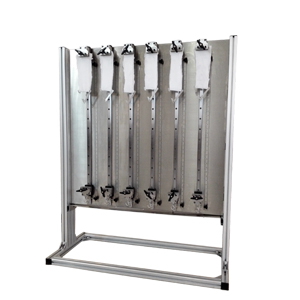

ASTM D3107 static tensile recovery tester |
【Scope of application】 Used for static testing of elastic fabric's tensile recovery performance. It adopts aviation aluminum frame design, 304 stainless steel fixtures and weights, imported high-quality guide rails, compact structure and stable performance. It is widely used by manufacturers, scientific research institutions, commodity inspection, quality inspection, etc. The unit is economical and powerful testing equipment. 【Related standards】 Meet the requirements of ASTM D3107 and other standards 【Basic technical specifications】 1. Test station: 6 2. Body material: aluminum alloy 3. Holder material: stainless steel 4. Weight load: 3 lbs set, 4 lbs set 5. Effective clamping width of the holder: ≥60mm 6. Gripper spacing: 30-750mm adjustable 7. Flat triangle hook holder: 6 pcs 8. Ruler length: 900mm 9. Size: 1100*500*1350mm 10. Weight: 60Kg |
