【Scope of Application】

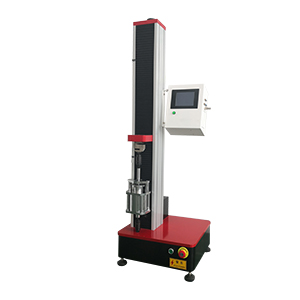

It is used to test the mechanical properties of leather, plastic woven bags, fabrics and other composite products such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slip, peeling, etc.

【Related standards】

GB/T3923.1, ISO13935.1, ISO9073.3/4, GB10140, GB/T8947-1998<Composite plastic woven bag>

【technical parameter】

1. Load cell: 0.5-level high-precision force sensor

2. Capacity options: 100KG, 200KG, 500KG

3. Accuracy level: Level 1

4. Test range of test force: 0.4%～100%FS

5. Force accuracy: within ±1%

6. Power resolution: 1/200000

7. Power magnification: X1, X2, X5, X10, X20, X50, X100 and other seven gears full automatic gear shift switching

8. Displacement indication error: ±1% of indication

9. Displacement resolution: 0.005mm

10. Control system: frequency converter

11. Transmission mode: AC variable frequency motor

12. Motor function: 0.37KW

13. Body structure: the main frame and the control box are separated design

14. Test speed range: (25～100) mm/min, (50～200) mm/min, (100～500) mm/min, choose one

15. Speed ??accuracy: within ±1% of the indicated value

16. Test stroke (excluding fixture): 1000mm

17. Fixture treatment: all fixtures are treated with hard chromium plating, HRC55 above

18. Display system: JG-TEST Chinese (English) LCD display system

19. Multiple protection devices:

①. Mechanical start switch protects upper and lower limits of travel

②. Emergency stop switch brake protection in emergencies

③. Overcurrent, overvoltage, undercurrent, undervoltage, leakage and overload protection

④. Software overload limit protection

⑤. Breakpoint shutdown protection

⑥. Emergency braking can be performed in an emergency

20. Volume: (560x420x1800) mm

21. Power supply: AC220V 50HZ

22. Weight: about 200kg
