【Scope of application】

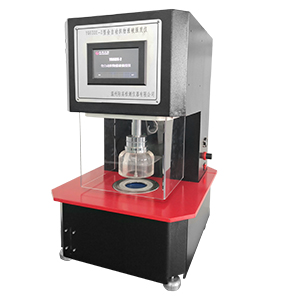

The electronic bursting strength tester is used to measure the expansion force and degree of expansion when all kinds of textiles, non-woven fabrics, leather and other materials are subjected to forces at the same time in the warp, weft and all directions (elastic diaphragm method).

【Related standards】

GB/T7742 FZ/T60019 ISO2960 ASTMD3786, etc. (not limited to the above standards, please consult our business staff for details)

【technical parameter】

1. Measuring range: 0-6.000 Mpa

2. * Small graduation value: 0.002Mpa

3. Test area: 7.3cm2 (Φ30.5mm)

4. Elastic diaphragm thickness: ≤2mm

5. Lower clamp ring: Φ30.5±0.05mm

6. Maximum expansion: 35 ±0.02mm

7. Maximum burst time: 99.9±0.1S

8. Pressure rate: 10 -150ml/min

9. Power source: AC220V 50Hz 200W

10. Dimensions: 430×530×520mm

11. Weight: 75kg
