【Scope of application】

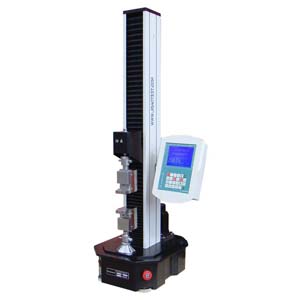

YG162D/E electronic fiber strength tester is used to test the physical properties of single and flat bundles of wool, rabbit hair, cotton fiber, animal and plant fibers, various chemical fibers and metal superfine wires.

【Related standards】

GB/T9997 GB/T14337 ISO5079 ISO11566 etc.

【technical parameter】

1. Working mode: CRE principle, microcomputer control, intelligent electronic touch display, support online communication.

2. Speed adjustment range: 0.1-30000mm/min

3. Speed control accuracy: ≤±2%

4. Acceleration time: ≤5ms

5. Travel speed: 200-3000mm/min

6. Collection frequency: ≥2500 times/sec

7. Measuring force range: 20N - 300N

8. Force measuring accuracy: ≤±0.02%F•S

9. Force resolution: 0.01N

10. Test stroke: 600mm

11. Elongation accuracy: ≤0.1mm

12. Breaking time accuracy: ≤1 ms

13. Specimen holding: pneumatic holding/electric holding

14. Control transmission: servo motor and driver

15. Man-machine interface: PC + touch screen, two-way control

16. Power source: AC220V±10% 50Hz 1KW

17. Dimensions: 500×450×1200mm

18. Weight: 100Kg
