【Scope of application】

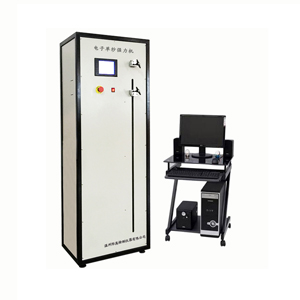

YG021DL electronic single-yarn strength tester is used to test the breaking strength and elongation of single yarns of various cotton, wool, hemp, silk, chemical fibers, and core-spun yarns and pure or blended yarns.

【Related standards】

GB/T14344 GB/T3916 ISO2062 ASTM D2256

【technical parameter】

1、Test method: constant velocity elongation, measuring the breaking strength and elongation of the sample, recording the peak strength, elongation at break, Breaking strength and breaking elongation etc.

2、Force measuring system: resistance strain load cell and 16-bit high-speed AD conversion chip

3、Sampling frequency: 1000Hz

4、Force measuring range and minimum division value:

5、Force measurement accuracy: ≤±0.02%F•S

6、Drive mode: stepper motor drive

7、Stretching speed: 10～3000mm/min adjustable

8、Sampling length: 20～500mm adjustable

9、Pre-tension: 0-150cN tension scale

10、Print output: A4 format Chinese report/curve

11、Communication interface: RS232, 115200 baud rate

12、Power source: Ac220V±10% 50Hz

13、Rated power: 150W

14、Weight: about 50Kg

15、Dimensions: 520×400×1600 mm
