【Scope of application】

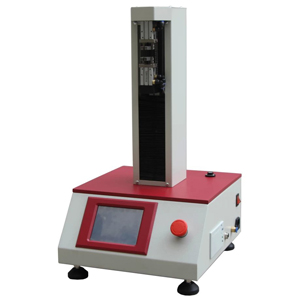

YG028S-50KN universal material testing machine is widely used in all kinds of hardware, metals, cables,... and other materials to test the tensile, tear, peel, compression, bending and other materials research and development, inspection and testing, and functional Complete and versatile. Comply with: GB, ISO7500/1, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610, CNS9471/9470 and other national standards.

【Product Specifications】

1. Load cell: 0.5 level force sensor

2. Capacity selection: 0-50KN

3. Accuracy level: 0.5 level

4. Test range of test force: 0.4%～100%FS

5. Force accuracy: within ±0.5%

6. Power resolution: 1/500000

7. Data sampling frequency: 2500 times/sec

8. Displacement indication error: ±0.5% of indication

9. Displacement resolution: 0.00004mm

10. Deformation measurement range: 2%～100%FS

11. Deformation indication error limit: within ±0.5% of indication

12. Large deformation measurement range: (10～1000)mm (optional function)

13. Error limit of large deformation indication: ±0.5% of indication

14. Large deformation resolution: 0.008mm

15. Control system: servo controller

16. Transmission mode: servo motor

17. Motor function: 4.5KW

18. Deceleration device: Italy oteshi precision hollow cast aluminum reducer

19. Transmission joint plate: forged from high-carbon steel, with good mechanical strength and no deflection

20. Drive screw: double structure ball screw

21. Drive chain: carbon steel 5-point double-row chain drive

22. Body structure: the main frame and the control box are separated design

23. Testing speed range: (0.001～500) mm/min

24. Speed accuracy: within ±0.2% of the indicated value

25. Test stroke (excluding fixture): 1000mm

26. Effective pillar spacing: 600mm

27. Fixture processing: all fixtures are treated with hard chrome plating, HRC55 or above

28. Display system: special software for material testing machine independently developed by JIGAOTEST based on XP level

29. Data transmission: 16 bit data transmission is used. RS-232 data transmission, all parameters are stored on the peripheral hardware, the computer does not need to install any external hardware, which is greatly convenient for users to replace, upgrade, and maintain the computer.

30. Multiple protection devices:

①. Mechanical start switch protects upper and lower limits of travel

②. Emergency stop switch brake protection in emergencies

③. Overcurrent, overvoltage, undercurrent, undervoltage, leakage and overload protection

④. Software overload limit protection

⑤. Breakpoint shutdown protection

⑥. Emergency braking can be performed in an emergency

31. Volume: (650x800x1780) mm (can be customized according to actual needs)

32. Power supply: AC220V 50HZ

33. Weight: about 550kg
