【Scope of application】

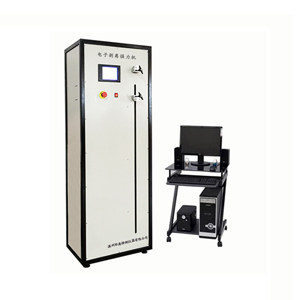

The electronic peel strength tester is used to test various peel strengths of adhesive interlining, multi-layer glued fabric, hot melt adhesive interlining and clothing fabric, interlining and fabric adhesion, coating adhesion, etc.

【Related standards】

FZ/T01085, FZ/T80007.1, AATCC 136, FZ/T01010, FZ/T60011, etc.

【technical parameter】

1. Force measuring range and accuracy

2. Load accuracy: ≤±0.02%F•S

3. Drive mode: stepper motor drive

4. Stretching speed: 10～3000mm/min adjustable

5. Data sampling frequency: 1000 times/sec

6. Maximum elongation: 800mm

7. Clamp width: 60mm

8. Elongation resolution: 0.01mm

9. Data storage capacity: 1000 times (testing machine data storage capacity), and can be browsed at any time

10. Print output: A4 format Chinese report/curve

11. Communication interface: RS232, 115200 baud rate

12. Power supply: Ac220V 50HZ 200W

13. Dimensions: 520 mm×400 mm×1600 mm (L×W×H)

14. Weight: about 60Kg
