【Scope of application】

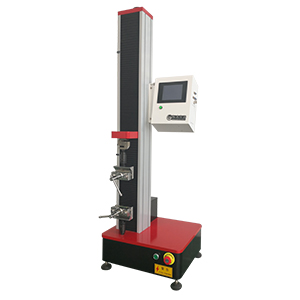

It is used to test the mechanical properties of composite products such as leather, plastic woven bags, fabrics, such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slip, peeling, etc. The machine comes with a printer.

【Related standards】

GB/T3923.1, ISO13935.1, ISO9073.3/4, GB10140, GB/T8947-1998<Composite plastic woven bag>

【technical parameter】

1. Load cell: 0.5-level high-precision force sensor

2. Capacity options: 100KG, 200KG, 500KG

3. Accuracy level: Level 1

4. Test force test range: 0.4%～100%FS

5. Force accuracy: within ±1%

6. Power resolution: 1/200000

7. Power magnification: X1, X2, X5, X10, X20, X50, X100 and other seven-speed automatic shifting switch

8. Displacement indication error: ±1% of indication

9. Displacement resolution: 0.005mm

10. Control system: frequency converter

11. Transmission mode: AC variable frequency motor

12. Motor function: 0.37KW

13. Reducer: Italy OTS precision hollow cast aluminum reducer

14. Transmission joint plate: forged of high carbon steel, with good mechanical strength and no deflection

15. Drive screw: adopt Taiwan double structure precision ball screw

16. Guide rod: made by South Korean Tae King guide rod, the surface is treated with high frequency and hard chrome plating, HRC60 or higher

17. Active bearing: adopt Japanese NSK high carbon ball bearing

18. Body structure: the main frame and the control box are separated design

19. Test speed range: (25～100) mm/min, (50～200) mm/min, (100～500) mm/min, choose one

20. Speed:accuracy: within ±1% of the indicated value

21. Test stroke (excluding fixture): 1000mm

22. Fixture treatment: all fixtures are treated with hard chrome plating, HRC55 or above

23. Dust-proof device: adopts Taiwanese anti-folding dust cover to protect the ball screw from dust and ensure the life and accuracy of the ball screw

24. Surface treatment of the body: using DuPont powder from the United States, electrostatic spray paint process, curing at a high temperature of 200 ℃ to ensure that the color will not fade for a long time

25. Display system: JG-TEST Chinese (English) LCD display system

26. Multiple protection devices:

①. Mechanical start switch protects the upper and lower limits of travel

②. Emergency stop switch brake protection in case of emergency

③. Overcurrent, overvoltage, undercurrent, undervoltage, leakage and overload protection

④. Software overload limit protection

⑤. Breakpoint shutdown protection

⑥. Emergency braking can be performed in an emergency

27. Active switch: Japan Sanling 30A, leakage protection switch

28. Volume: (560x420x1700) mm

29. Power supply: AC220V 50HZ

30. Weight: about 90kg
