【Scope of application】

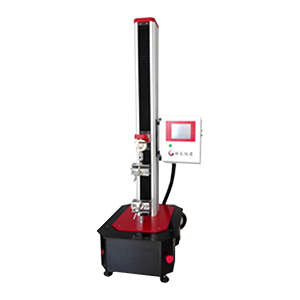

It is used to test the mechanical properties of various textiles such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slippage, peeling, etc., and is widely used in rubber, plastic, leather, metal, wire, paper , Packaging, building materials, petrochemical, electrical, geotechnical materials, tensile, compression, bending, bonding, peeling, tearing, bursting, creep and other tests of force, elongation, deformation test.

【Related standards】

GB/T3923.1, ISO13934.1, ISO13935.1, ISO9073.3/4, ASTM D5035, ASTM D2261, etc.

【Test Mode】

Constant velocity elongation (CRE) type, take the specified sample, use the instrument, stretch at the specified speed until it breaks, and record the breaking strength and breaking elongation at the same time.

【technical parameter】

1. Structure: Single arm type (including computer interface)

2. Measuring force range: 2500N or 5000N

3. Effective stroke: 1000mm (without fixture)

4. Load measurement range: 1%-100% of maximum load

5. Load measurement accuracy: +0.02% F·S

6. Stretching speed: 0.1-1000mm/min digital speed regulation, error ≤±2%

7. Speed :accuracy: ±0.1%

8. Dimensions (mm): 500×600×1450

9. Fixture configuration: a set of tensile fixtures (other functional fixtures can be customized according to user test requirements)

10. Power supply: single-phase AC 220V±10%V

11. Weight: 90kg
