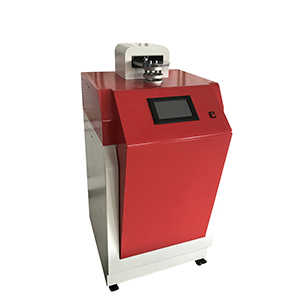

JG226 Textile Airflow Resistance Tester |
【The main purpose】 Textile air resistance tester, also known as fabric air resistance tester, is mainly used to measure the air penetration resistance of textiles and meltblown fabrics, cotton wool, space cotton, etc. It is used to identify the comfort and hygiene of clothing and textiles, especially medical textiles. One of the important means of sex. It can be widely used in polymer material production enterprises, printing and dyeing industrial enterprises, textile inspection departments, scientific research units, textile colleges, etc. 【Guideline】 GB 19083-2010 Technical requirements for medical protective masks. 【technical parameter】 1. Display: 7.0-inch true color touch screen, Chinese menu operation 2. Air flow adjustment range: 10L/min-100 L/min (600L/h-6000 L/h) 3. Airflow resistance measurement range: 0-1kPa 4. Test time: 1 second to 99 hours optional 5. Data output: automatic statistics and printing of the maximum value, minimum value, average value, etc.; 6. Suction volume adjustment: airflow feedback dynamic adjustment, stable speed, no overshoot 7. Data storage: ≤1000 groups 8. Power supply: AC 220V±10V 50Hz 9. Weight: 80Kg 10. Outline: 600×700×1100mm (L×W×H) |
