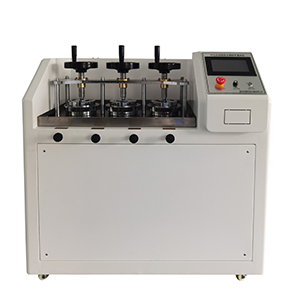

YT1203G Waterproof Membrane Impermeability Tester |
【Scope of application】 It is used to test petroleum asphalt felt, polymer roofing waterproof coiled material and other waterproof material products to test the resistance to stagnant water or limited surface water pressure resistance. This method is used for high-pressure applications of coiled materials, such as special roofs, tunnels, and pools. Wait. 【Standards compliant】 GB/T328.10-2007 Method B GB18242-2000, GB18243-2000 【technical parameter】 1. Display: 7.8-inch true color touch screen 2. Test pressure range: 0.1—2.5Mpa 3. Outer diameter of permeable tray: 135mm 4. The inner diameter of the permeable tray: 92mm 5. Test disc: 7-hole disc (3 pcs), slit disc (3 pcs) 6. Time setting: 0-9999 min 7. Dimensions: 700×550×1650mm (W×D×H) 8. Power supply: AC220V, 100W 9. Weight: 130KG |
