【Scope of application】

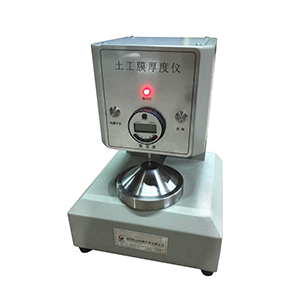

It is used to measure the thickness of geomembrane, sheet and other materials without embossing and corrugation under different pressures and specified time. It can test smooth geomembrane and rough geomembrane through different configurations.

【Standards compliant】

GB/T 6672-2001, GB/T17643-2011 Appendix A, JTG E50, SLT235

【technical parameter】

1. The radius of curvature of the upper measuring surface: SR15mm-SR50mm (smooth surface configuration)

Or SR0.8mm±0.1mm, the angle of the vertebral body is 60±2° (rough surface configuration)

2. Sample pressure: 0.1N～0.5N (smooth surface) or 0.56N±0.05N (rough surface) Optional

3. Thickness measurement range: 0～12mm

4. Minimum graduation value: 0.001mm

5. Numerical display degree: LCD display

6. Dimensions: 300mm×150mm×300mm

7. Weight: 28kg
