【Scope of application】

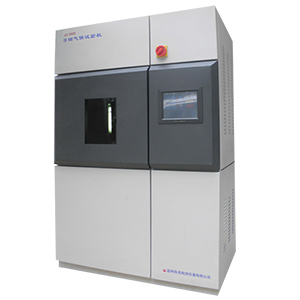

The YT3000 geotextile weathering tester is used for the light resistance, weather resistance and light aging test of various geosynthetics. By controlling the conditions of light irradiance, temperature, humidity, rain, and alternating light and dark in the test chamber, the simulated natural environment required for the experiment is provided, and the performance change of the sample after the light radiation is detected.

【Related standards】

ISO 4892-2, GB/T 16422.2, ASTM D4355, JTG E50 T1163

【Technical Description】

1. Xenon lamp power 2.5KW (air-cooled long arc xenon lamp). Lifetime: 800～1000 hours

2. Xenon lamp wavelength 280-800nm

3. Xenon lamp radiation intensity 550W/m2

4. Trigger power 2.5KW working voltage DC 220V

5. Blackboard temperature range (room temperature +100C)～65℃±3℃

6. Temperature fluctuation ±0.5℃

7. Temperature uniformity≤±3℃

8. Humidity range 50%R.H～85%R.H±5%R.H

9. Temperature deviation≤±5℃

10. One layer of sample tray, adjustable up and down distance

11. Sample 75×150㎜/piece

12. The distance between the arc center and the tray can be adjusted from 200 to 300mm

13. Dark light cycle 0～9999 hours arbitrarily set cyclically (such as 8H light, 4H condensation)

14. Working room size 500×600×500 (D×W×H)㎜

Dimensions 1000㎜×1100㎜×1700㎜ (D×W×H)

15. Power/Power 380±10%V, 50±1%Hz (Xenon lamp lighting voltage: 220±10V)/Total power is about 13KW
