【Scope of application】

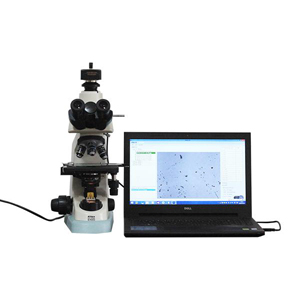

The black dispersion detector is our company based on the international standard GB/T 18251-2000 for the detection of pigment or carbon black dispersion in polyolefin pipes, pipe fittings and mixed ingredients. The instrument is adapted to DZ3600-based software and corresponding microscopes. By measuring the size, shape, and dispersion of carbon black particles, it can establish the macro performance indicators of these parameters and mechanical properties, antistatic properties, and moisture absorption properties. The internal connection will have a positive impact on the quality assurance of plastic materials, production technology, and new product research and development, and at the same time promote the rapid improvement of the technological level of enterprises and industries.

【Standards compliant】

Q/CR549-2016 Railway Engineering Geosynthetics Technical Standard

GBT 18251-2000 Method for determination of pigment or carbon black dispersion in polyolefin pipes, pipe fittings and mixtures

GB/T 2951.41 General test methods for insulation and sheath materials of electric and optical cables

GB/T 15558.1-2015 Buried Polyethylene (PE) Piping System for Gas-Part 1: Pipes

【technical parameter】

1. The detection range is 0.5um-1cm;

2. Imaging resolution of 2592*1944 (5 million pixel CCD digital camera);

3. Optical magnification 100 times

4. The illumination angle of the light source is 30°;

5. Image size 640*480, 1024*768, 2048*1536, 2592*1944;

6. Analysis time Choose different image sizes, slightly different;

7. Instrument working power 220V /2A/50Hz
