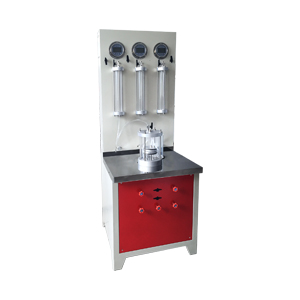

YT1208 Bentonite Waterproof Blanket Permeability Coefficient Tester |
【Scope of application】 It is used to determine the permeability coefficient of geotextile bentonite mat in a certain period of time under the specified hydraulic pressure difference. 【Standards compliant】 ASTM D5887, SL 235-2012, JG/T193, etc. Note: meet the above standards, but not limited to the above standards; 【technical parameter】 1. Sample diameter: ¢100mm 2. Maximum test force: 600KPa 3. End pressure: 0-550Kpa continuously adjustable 4. Pressurization method: air pressure, 70kpa/min at a constant speed 5. Diameter of permeable stone: Φ100mm 6. Dimensions: 610x730x1850 (mm) 7. Whole machine weight: 150Kg |
